In stock

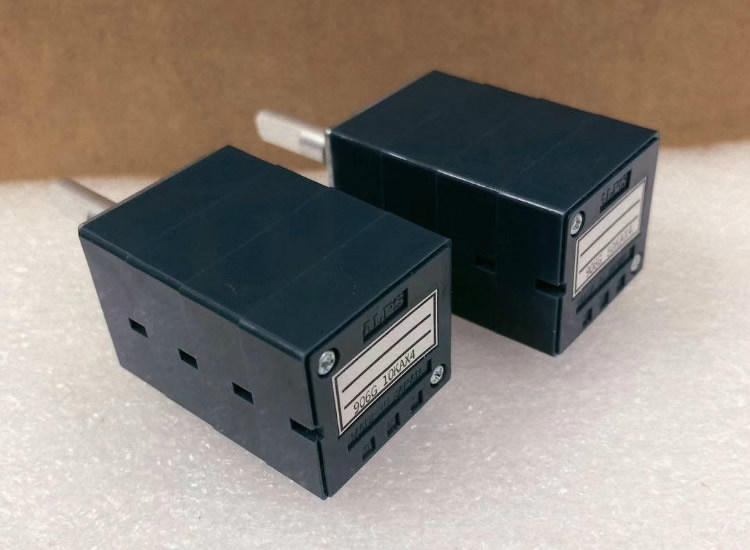

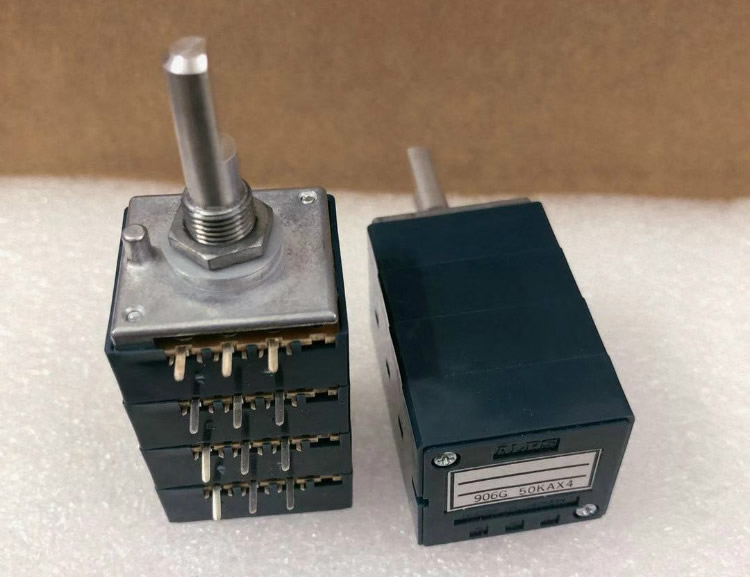

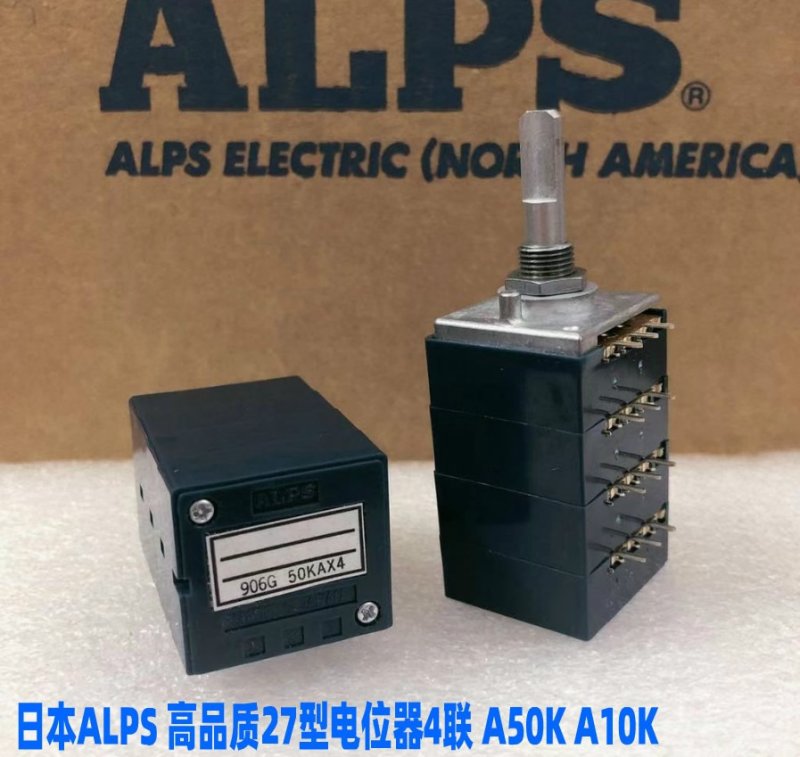

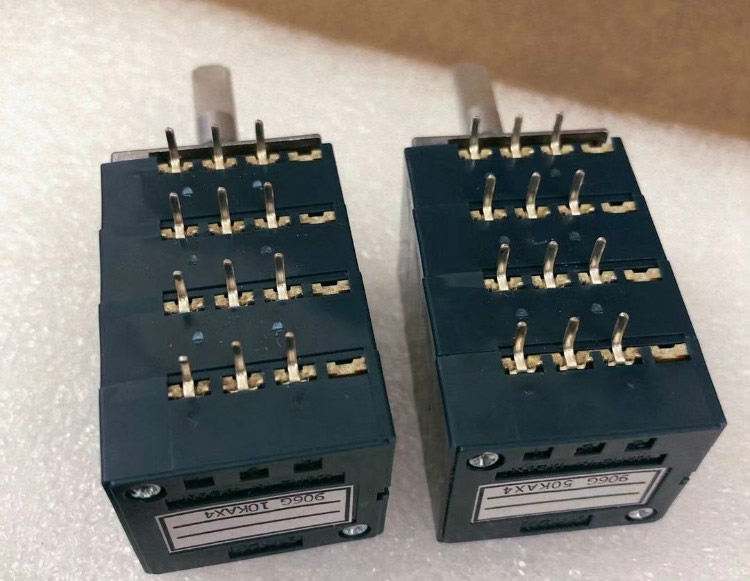

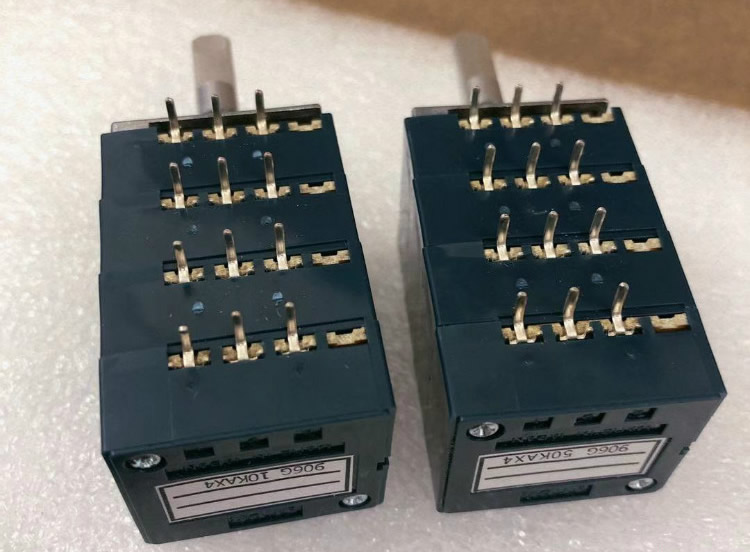

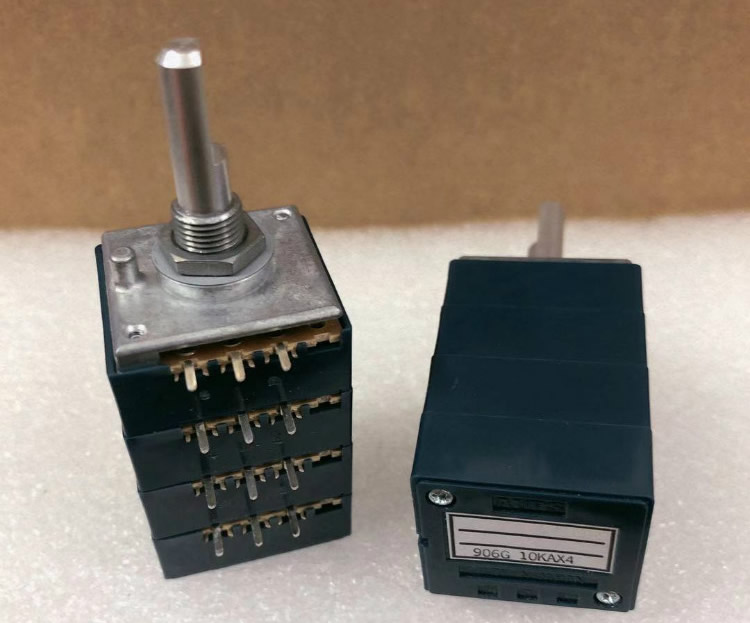

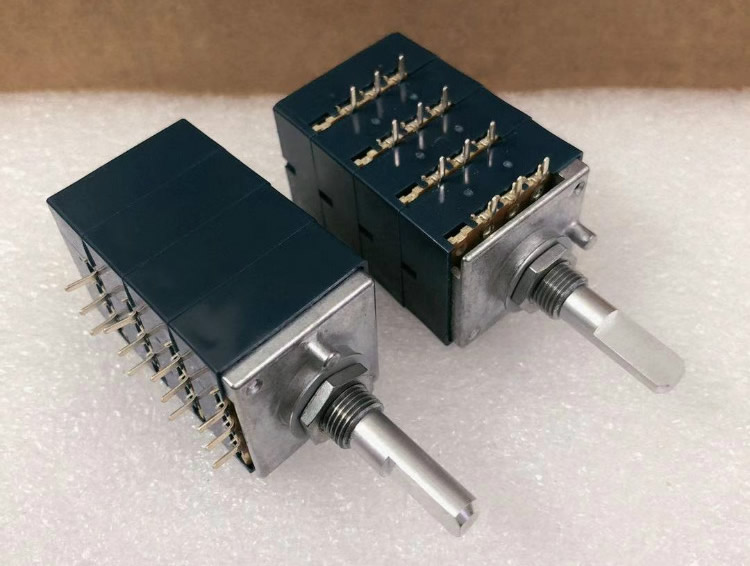

ALPS RK27 4-unit Amplifier Main Volume Quadruple Potentiometer A10K A50K 10KAX4 50KAX4

Model: ALPS RK27 High Quality Fever Ear Amplifier Main Volume Quadruple Potentiometer A10K A50K
ALPS RK27 High Quality Fever Ear Amplifier Main Volume Quadruple Potentiometer A10K A50K
Model
$32.00
Description
Reviews
  • Model
  • ALPS RK27 High Quality Fever Ear Amplifier Main Volume Quadruple Potentiometer A10K A50K

Description:

电阻体数  4 联
安装方向 Horizontal type
軸受固定方法 螺纹固定
操作部形状 平轴
操作部长度 25mm
定位 无
总阻值 10kΩ  50kΩ
电阻规律 15A
使用温度范围 -10℃ to +70℃
电性能 总阻值允许差 ±20%
额定功率 0.05W
最高使用电压 30V AC
最大衰减量 100dB min.
相互偏差 -70dB to 60dB 3dB max.
-60dB to 0dB 2dB max.
绝缘电阻 100MΩ min. 500V DC
耐电压 500V AC for 1 minute
机械性能 全旋转角度 300°±3°
旋转扭矩 8 to 35mN·m
终端止挡强度 0.9N·m
轴推拉强度 100N max.
耐振性能 10 to 55 to 10Hz/分, 全振幅1.5mm, X.Y.Z 3方向各2小时
耐久性能 操作寿命 15,000 cycles
最小订货单位(pcs.) 日本 100
出口 500



 以下尺寸图是 2联的 尺寸图纸  实物是4联的 以下的尺寸仅供参考外形尺寸和电路图
