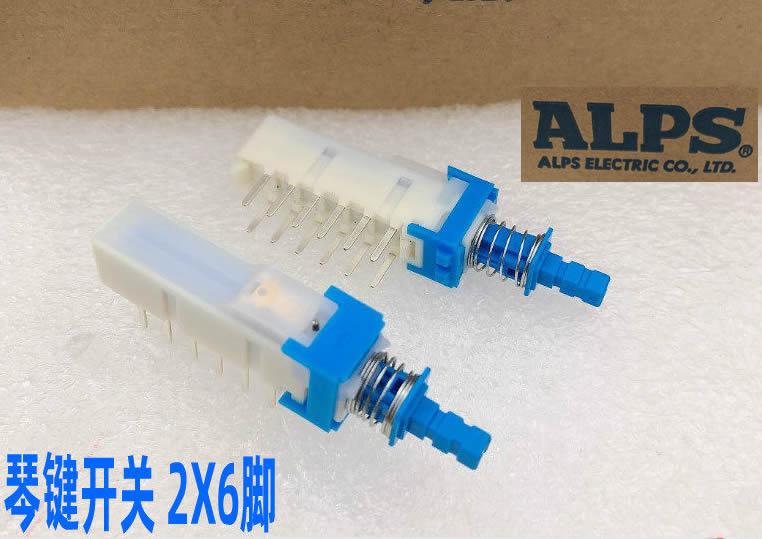

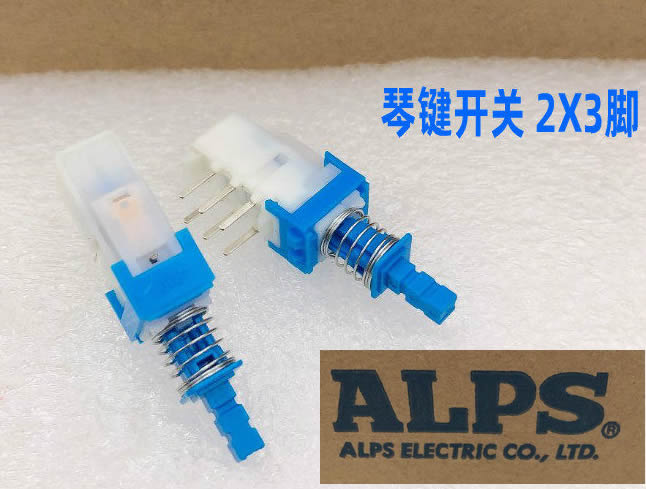

ALPS SPUN self-locking button switch 2X3 pin 2X6 pin keyboard keys power switch

Model: ALPS self-locking button switch 2X3 pin 2X6 pin keyboard keys power switch
ALPS self-locking button switch 2X3 pin 2X6 pin keyboard keys power switch
Model
$2.00
Description
Reviews
  • Model
  • ALPS self-locking button switch 2X3 pin 2X6 pin keyboard keys power switch

Description:

切换时限 Non shorting

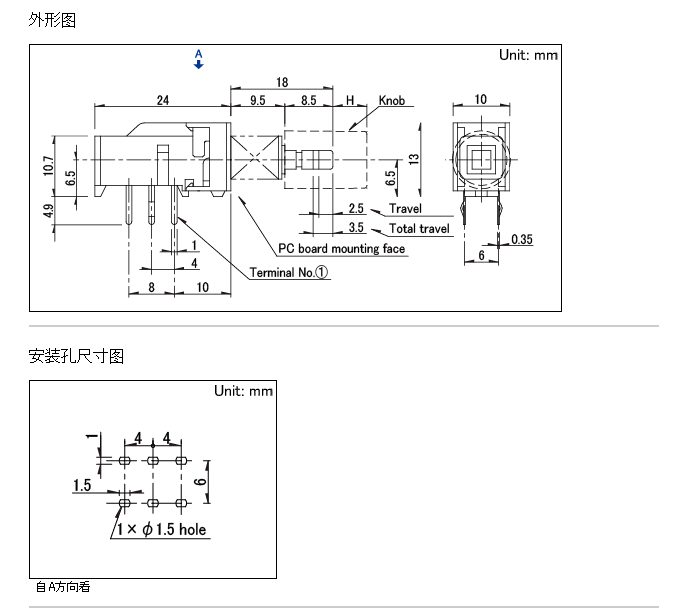

行程 2.5mm
全行程 3.5mm
额定 Standard
动作力 2±1N
安装方法 PC board

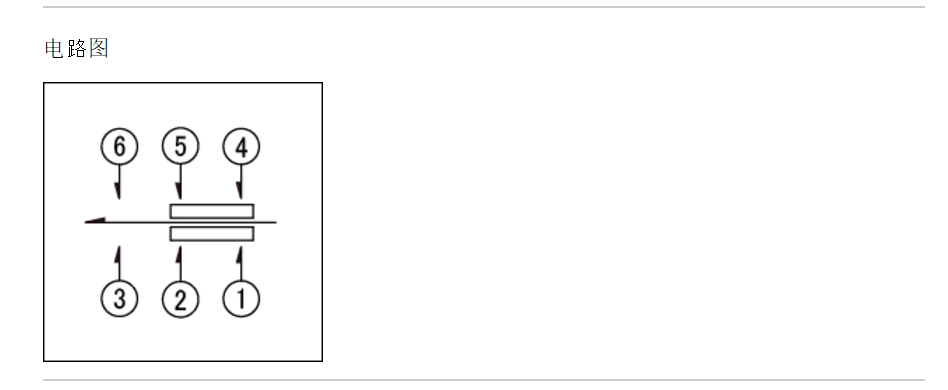

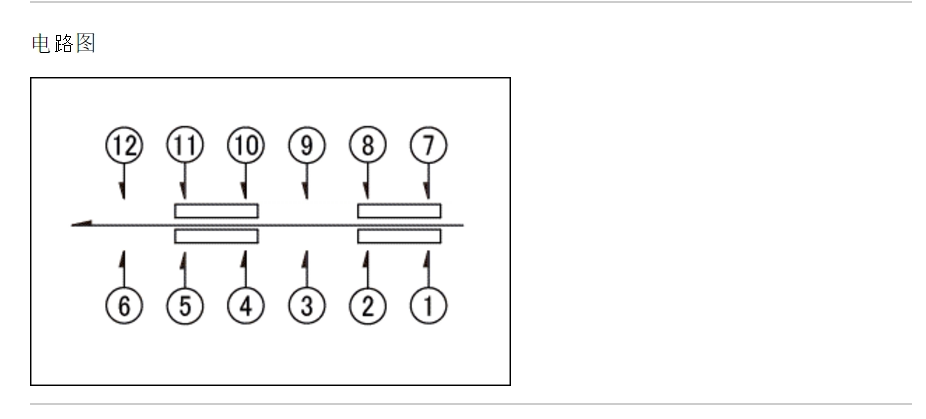

电路数 2路 - 4路 - 6路
动作 Latching
端子形状 Snap-in
使用温度范围 -10℃ to +60℃
最大额定/最小额定(电阻负载) 0.1A 30V DC/50µA 3V DC
电性能 接触电阻(初期/寿命后) 20mΩ max./40mΩ max.
绝缘电阻 100MΩ min. 500V DC
耐电压 500V AC for 1 minute
机械性能 端子强度 5N for 1 minute
操作部强度 操作方向 50N
拉引方向 50N
耐久性能 无负载寿命 30,000 cycles
40mΩ max.
负载寿命
最大额定负载		 10,000 cycles
40mΩ max.
耐环境性能 耐寒性能 -20℃ 96h
耐热性能 85℃ 96h
耐湿性能 40℃, 90 to 95%RH 96h
