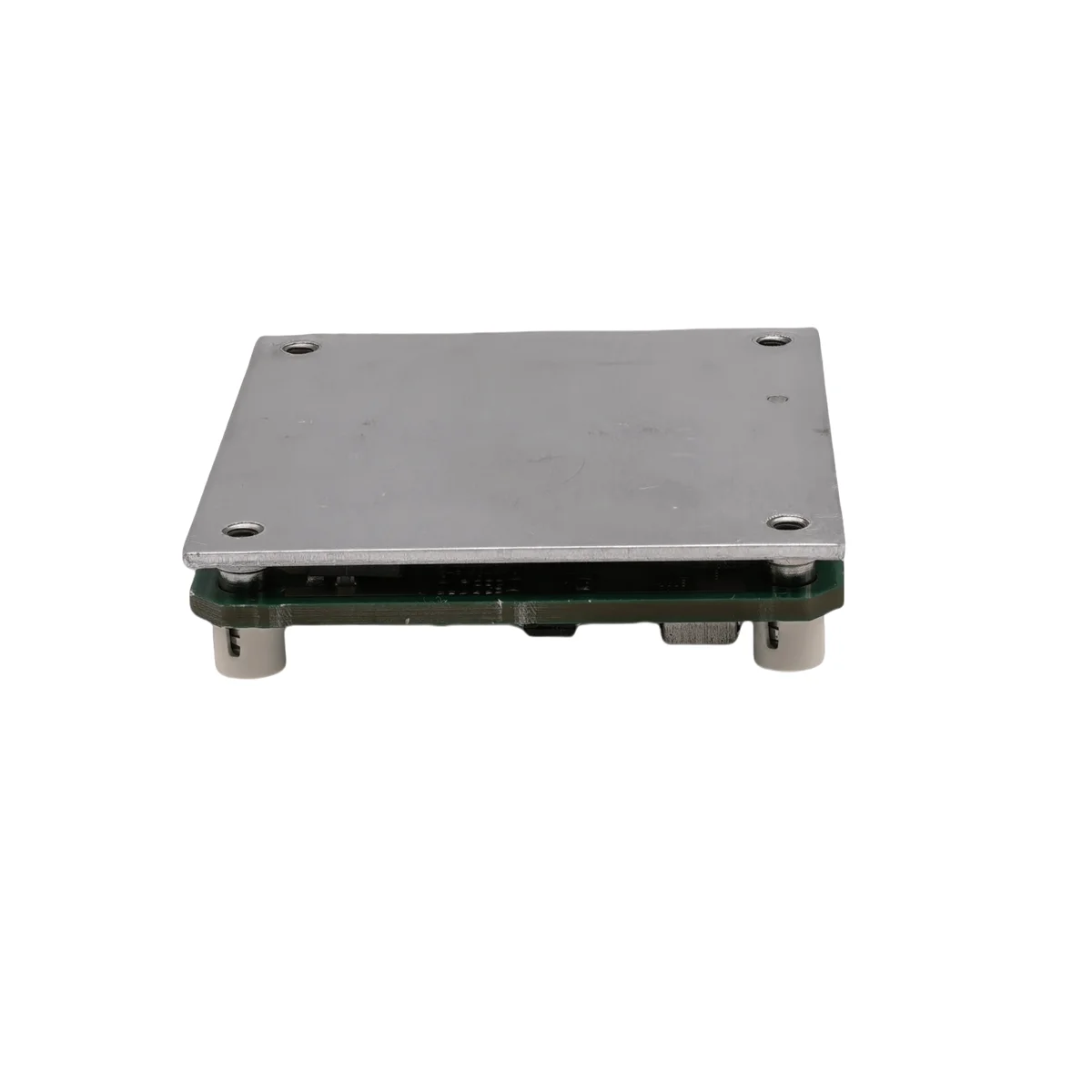

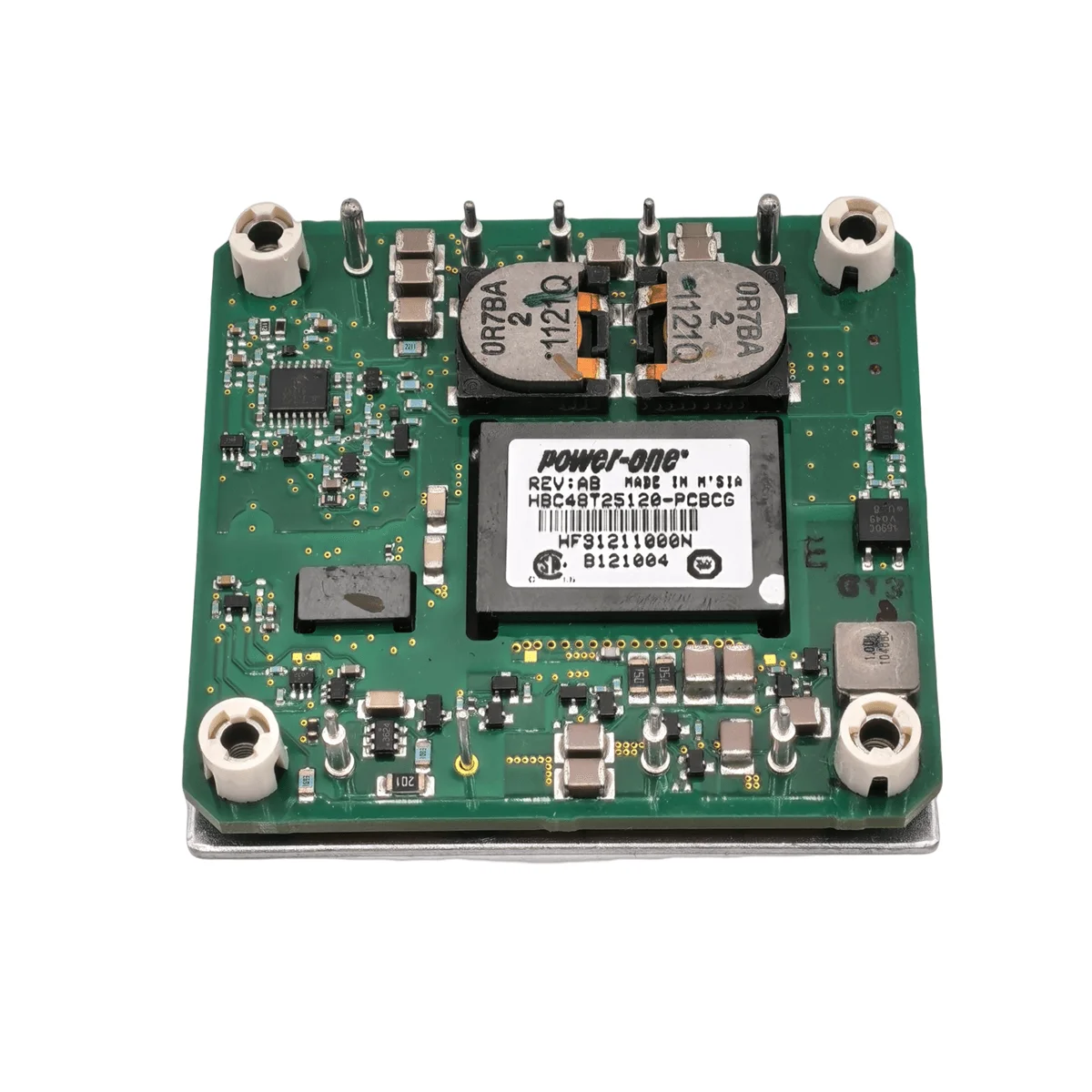

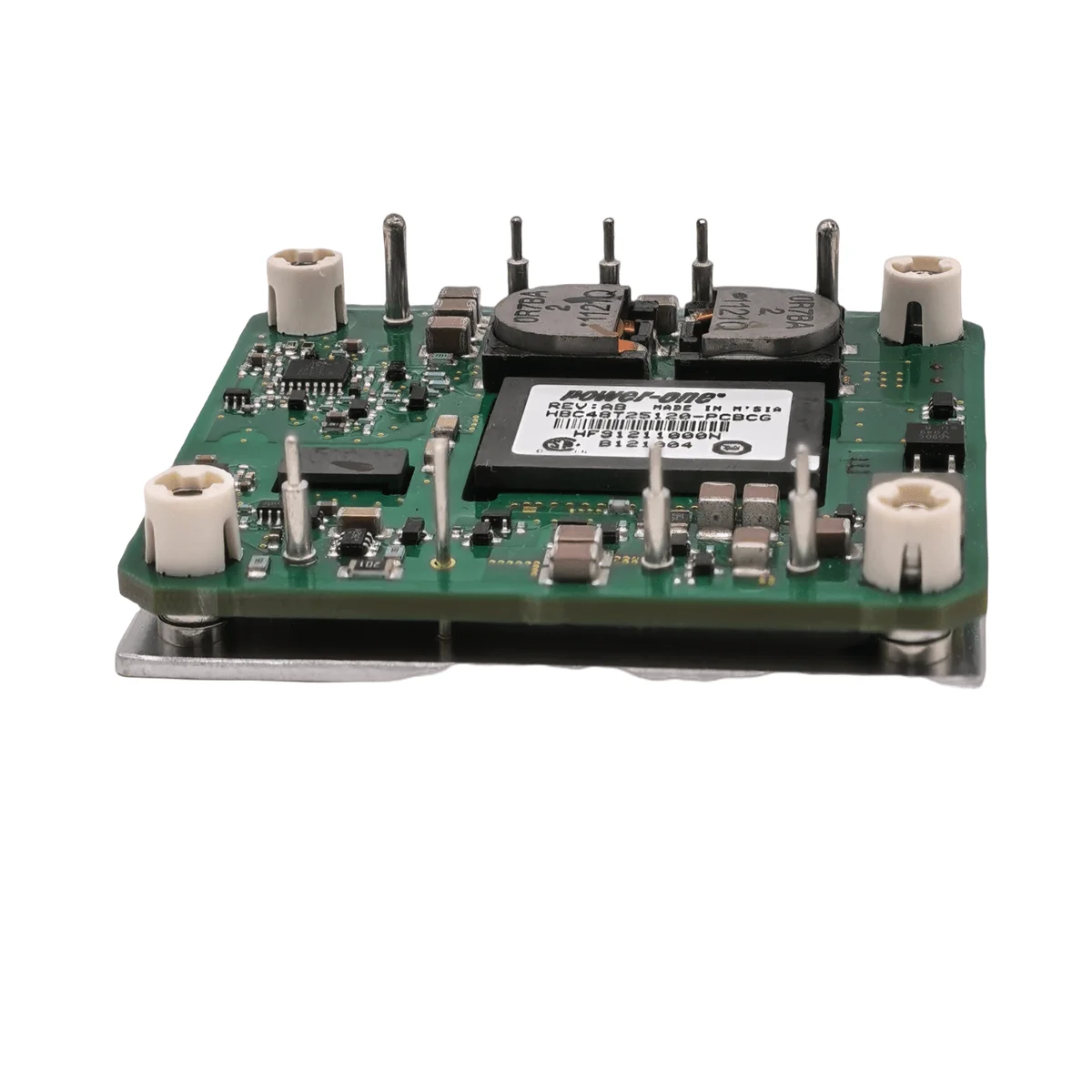

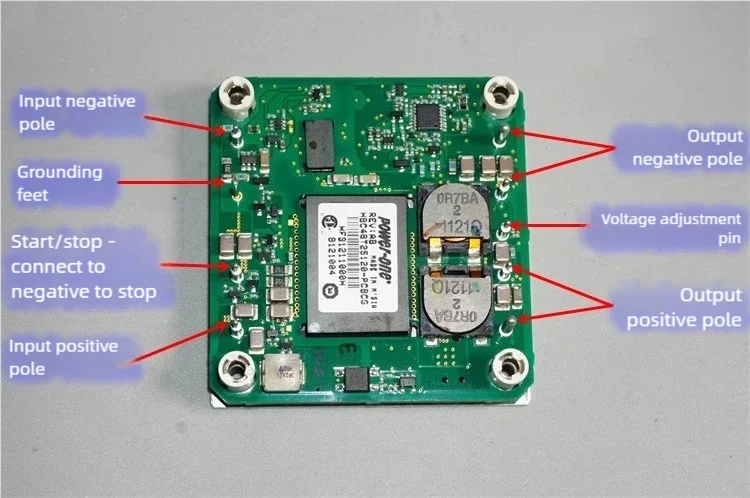

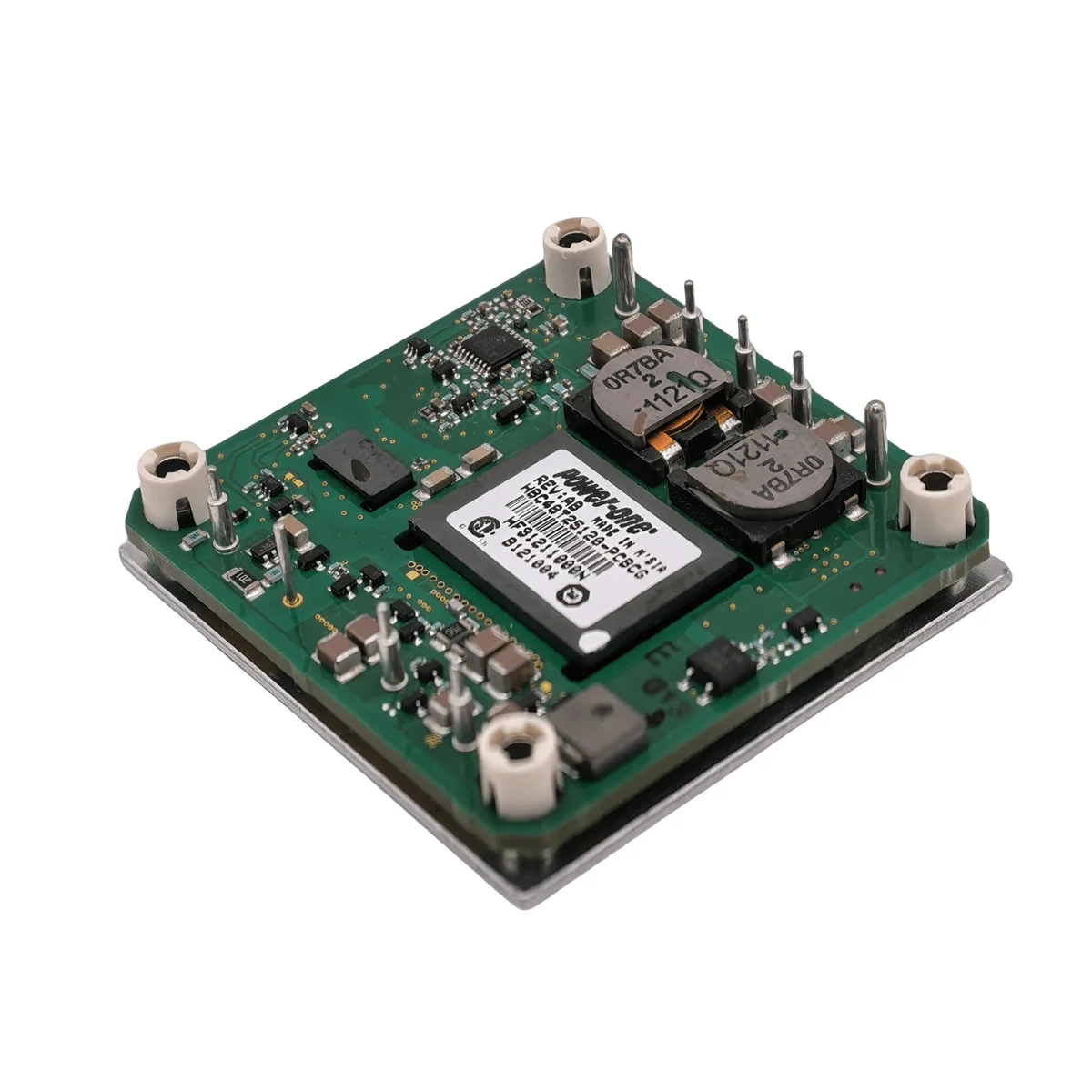

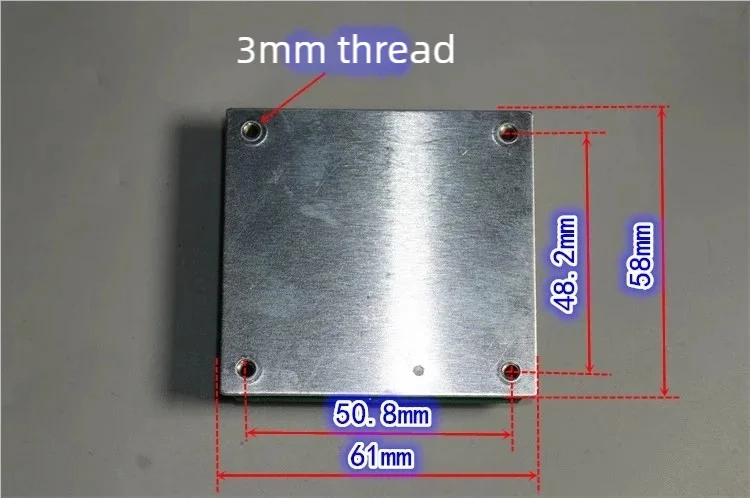

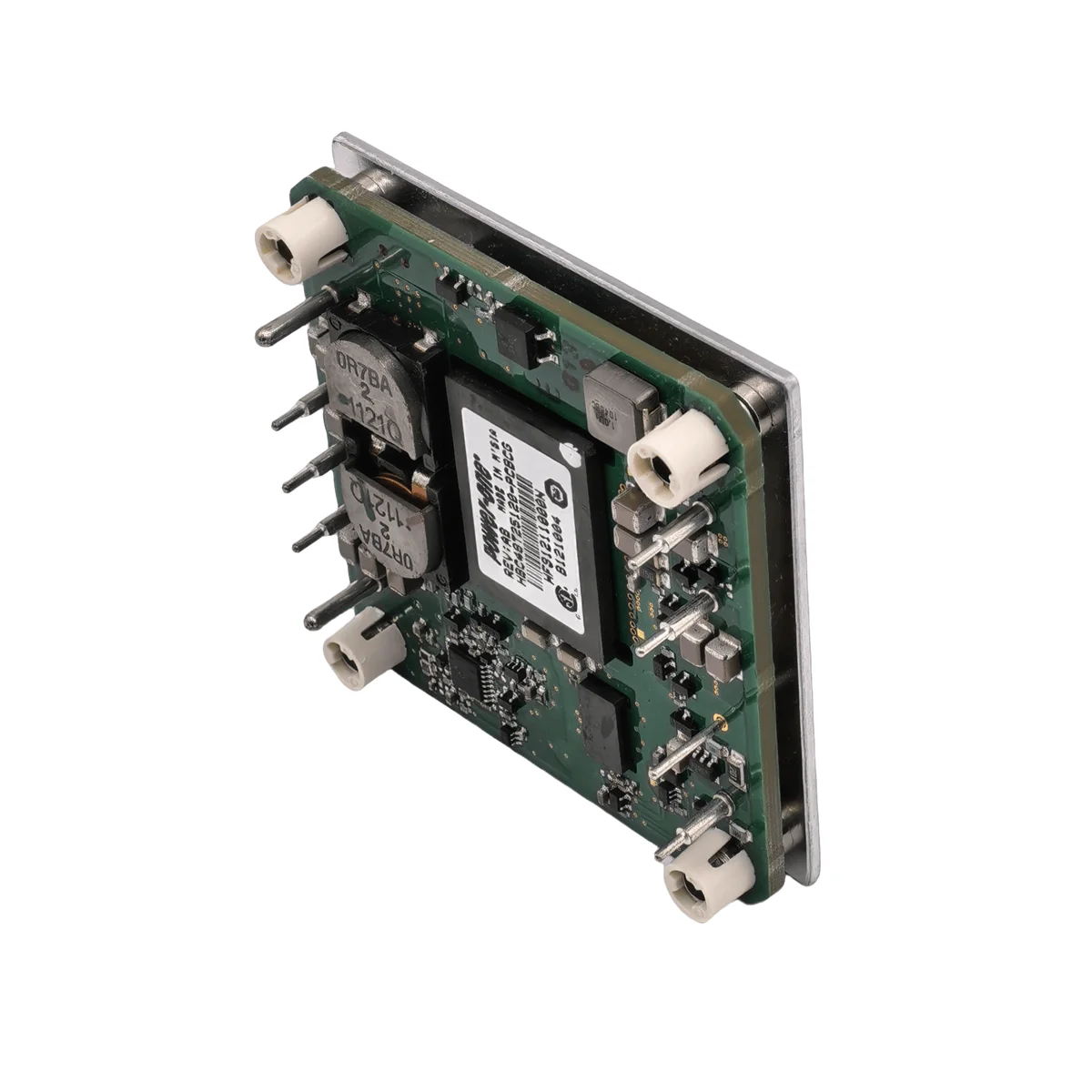

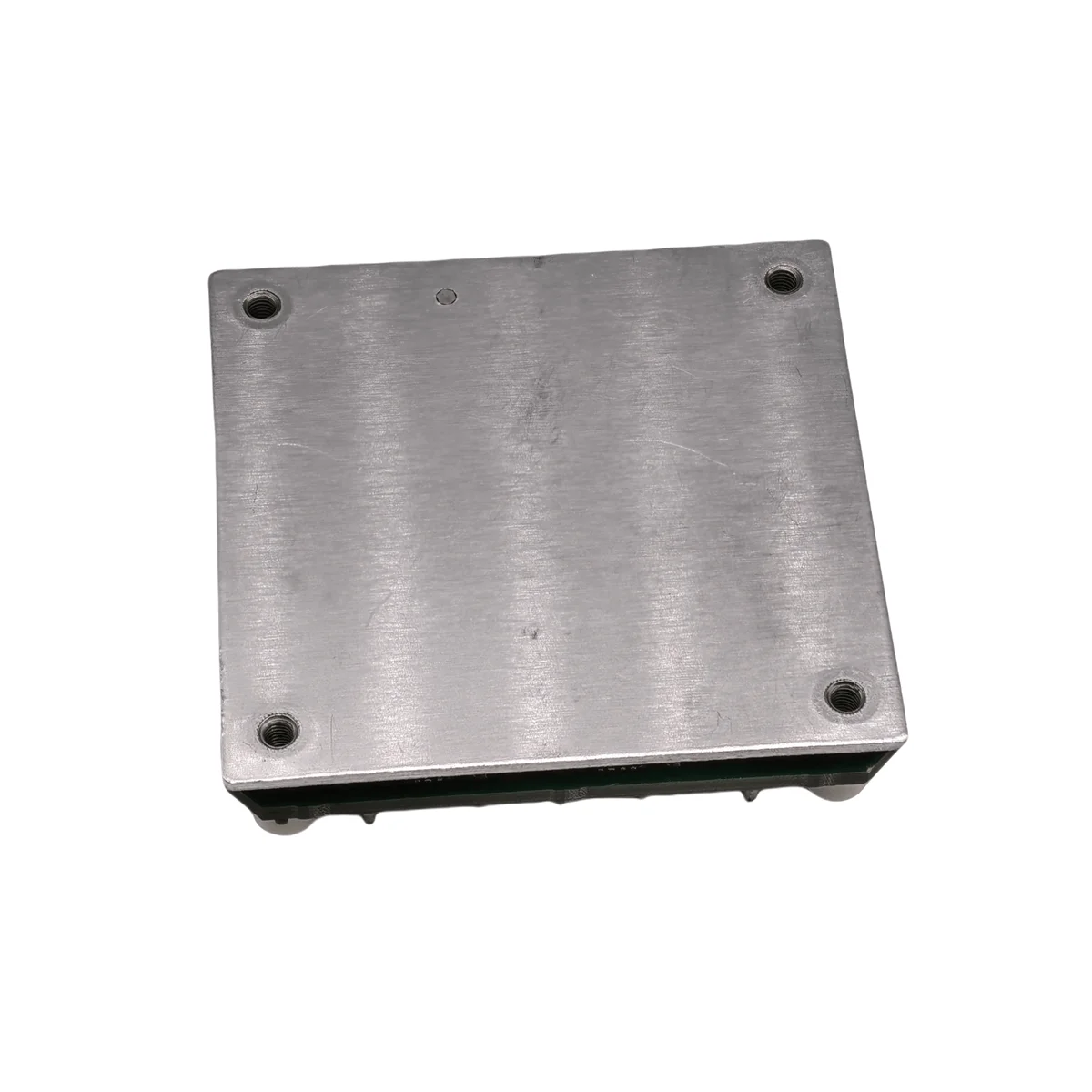

Brand new high-quality imported isolated power module in stock, half brick standard module, input 36-75V, output 12V25A, power 300W, industrial isolated power module, with good workmanship and materials, labeled and defined according to the introduction diagram, default output 12V, with fine adjustment voltage pin, external resistance maximum measured can be fine adjusted between 6V-14V, exceeding the range will protect the cut-off output. The back of the module is made of aluminum plate, and high-power use requires cooperation with the radiator.
The module weighs approximately 80 grams.
